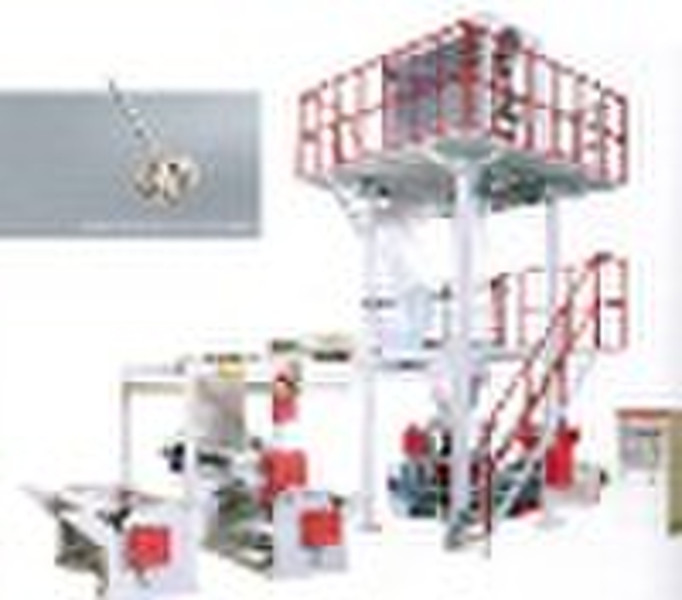

Hd/ldpe High Speed plastic blowing machinery

MAIN TECHNICAL VARIABLES MODEL ZY/HL-45EZ ZY/HL-50EZ ZY/HL-55EZ ZY/HL-65EZ SUITABLE MATERIAL HDPE LDPE LLDPE FILM WIDTH(MM) 200-600 300-800 400-1000 600-1300 FILM THICKNESS(HD)mm 0.009-0.08 0.009-0.08 0.009-0.08 0.01-0.08 (LD) mm 0.02-0.15 0.02-0.15 0.02-0.15 0.02-0.15 MAX.EXTRUSION OUTPUT(HD) 50KG/HR 60KG/HR 75KG/HR 105KG/HR (LD) 60KG/HR 80KG/HR 100KG/HR 125KG/HR SCREW DIAMETER(MM) Φ45 Φ50 Φ55 Φ65 SCREW L/D LENGTH 28:1 SCREW MATERIAL SACM-645/38 CRMOALA CYLINDER MATERIAL SACM-645/38 CRMOALA CYLINDER COOLING 370w X 2 370w X 2 550w X 2 550w X 3 DRIVING MOTOR(KW) 15 18.5 22 37 TEMPERATURE CONTROL 3 3 3 4 AVERAGE POWER-CONSUME(KW) 18 26 31 45 DIE SIZE(HD)mm 60/80 80/100 100/125 125/150 (LD)mm 150 180 250 300 TEMPERATURE CONTROL 3 AIR RING 1 PCS AIR BLOWER(KW) 2.2 2.2 3 5.5 CENTER STEADY STICK 2 (HDPE) PINCH ROLLER (DIA.WIDTH)MM Φ165X650 Φ165X850 Φ165X1100 Φ165X1400 HEIGHT ADJUSTABLE TYPE 700mm TAKE-UP SPEED(M/MIN) 10-80 10-80 10-80 10-80 TAKE-UP MOTOR(KW) 0.75 1.5 1.5 1.5 TYPE SURFACE FRICTION TYPE WINDING MOTOR(N.m) 5 10 10 16 WINDING SPEED(M/MIN) 10-80 10-80 10-80 10-80 COVER DIMENSION(M) 5.0X2.0X4.5 5.0X2.2X5.0 5.5X2.5X5.5 5.8X2.8X6.5
